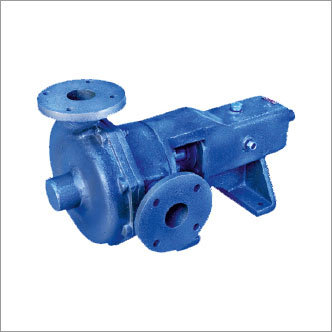

Side Suction Pump

Side Suction Pump
Side Suction Pump
Send Inquiry
Product Code : M30
Product Description

We are a leading company specializing in the business of manufacturing and supplying Side Suction Pump. This pump is for drawing liquid through a pipe into a chamber emptied by a piston. We manufacture this pump under the strict inspection of expert supervisors using best quality mild steel and cast iron. It is ideal for most medium duty abrasive and/or corrosive slurry services. Side Suction Pump is designed for extreme ease of maintenance and long hours of reliable operation. We make available this pump for clients in different specifications as to suit their requirements.

HORIZONTAL SINGLE STAGE SIDE SUCTION PUMPS

Using Single Stage Side Suction Pumps compression, Horizontal Single Stage Side Suction Pumps generate low-pulsation suction air. Perfected impeller design with curved blades guarantees Optimum efficiency. It is provide Zink & copper plant. It is reducing gland leakage.

We are sponsored by a group of persevering experts, which utilizes computerized weight transmitter, advanced tachometer and computerized electromagnetic stream meter to check our pumps on different parameters. Further, they likewise lead execution test on our range to guarantee the conveyance of impeccable pumps to our customers, arranged everywhere throughout the world.

Operating Data

Capacity:

up to 200 m3/hr

Head:

up to 100 mtr.

Discharge Size:

40 mm to 100 mm

Temperature:

130° c

Speed:

up to 3500 rpm

Pressure:

up to 10 kg/cm2

M.O.C:

C.I. – C.S., SS - 304/ 304L, SS – 316/ 316L,
Bronze, Alloy- 20, CD4MCU Hast alloy B & C, etc…


NOTE: only for positve/ooded suction head

Application

  • Filter press feeding
  • Effluent treatment plant
  • Dyes & intermediates.
  • Steel rolling mills.
  • All type of industrial application.
  • Slurry transfer
  • Ceramic, ETP & STP
  • Paper and pulp, sugar,and food.
  • Eva- operator, scrubber application.
  • Zink & copper plant.

Features

  • Single stage semi open impeller.
  • Special design for filter press application.
  • Reduce gland leakage.
  • Heavy duty shaft, sleeve & bearings.
  • Noise & maintenance free.
  • High efficiency low power consumption
  • Greases/oil lubricants bearings
  • Only positive suction head.
